Depending on the variant used, different requirements are necessary.
Variant: „Printer Terminal“
The variant “Printer Terminal” requires a mobile device (smartphone or tablet) which is equipped with an android operating system and a NFC reader. The power supply is provided directly by the printer via USB cable or separately with a power supply unit at a 230V socket.
Recommendations for mobile devices
|
Nokia G21 (smartphone) |
Galaxy Tab Active3 (tablet) |
Operating system |
Android 11 |
Android 11 |
Resolution |
720 x 1600 pixel |
1920 x 1200 pixel |
Display |
6,52 inches |
8 inches |
Battery |
5050 mAh |
5050 mAh |
NFC |
Yes |
Yes |
WLAN |
IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac |
IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11n IEEE 802.11ac IEEE 802.11ax |
Frequency range |
2,4 GHz, 5 GHz |
2,4 GHz, 5 GHz |
Special features |
Touchscreen can be operated with gloves |
Recommendations for a holder/rack for mobile devices
For a solution individually adapted to your requirements as shown in the following picture, please contact us under: sales@k-is.com.

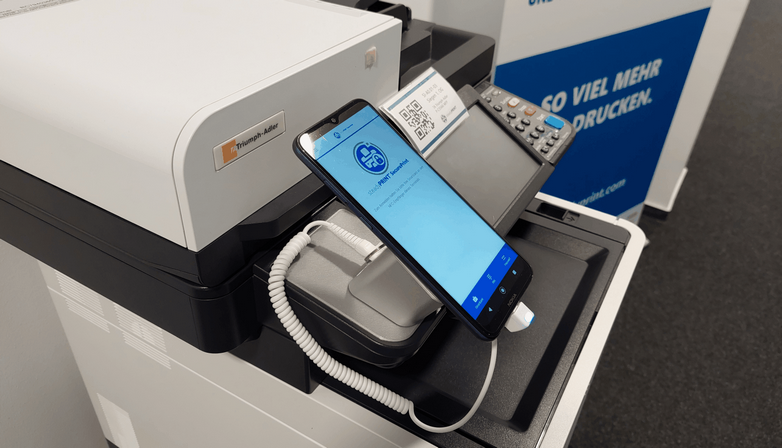

Figure 71: Individually adapted holder at printer

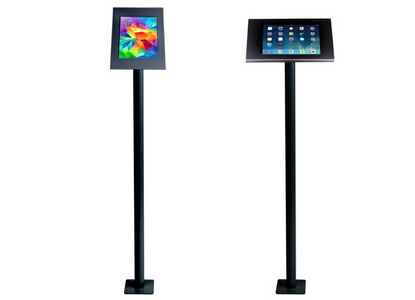

As an alternative we recommend the following ready-made solution:

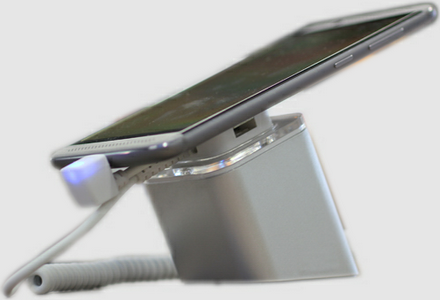

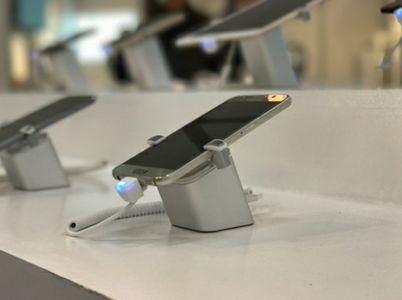

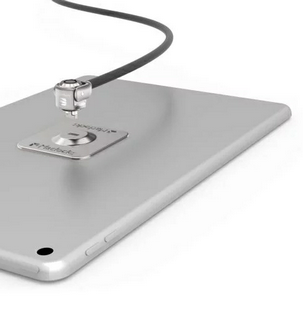

Recommendations for a theft protection of a mobile device
Recommendations for employee identity cards (compatibility list)
In the following you will find a compatibility list with different NFC tags that can be read via the NFC reader. No appropriate cards or no idea how to figure out the correct NFC type? Contact us under: sales@k-is.com.
|
NFC tag |
compatible |
1 |
NTAG 213 |
yes |
2 |
NTAG 215 |
yes |
3 |
NTAG 216 |
yes |
4 |
NTAG 413 DNA |
yes |
5 |
NTAG 424 DNA |
yes |
6 |
ULTRALIGHT EV1 |
yes |
7 |
ICODE SLIX |
yes |
8 |
DESFIRE EV1 |
yes |
9 |
DESFIRE EV2 |
yes |
10 |
DESFIRE EV3 |
yes |
11 |
MIFARE CLASSIC |
yes |
12 |
EM4200 |
No - as NFC tag is controlled with 125 KHz (RFID band) |
Variant: „BYOD“
The system requirements for a BYOD device are:
|
Terminal |
Operating system |
Android | iOS | Windows |
Camera |
yes |
WLAN |
yes |
